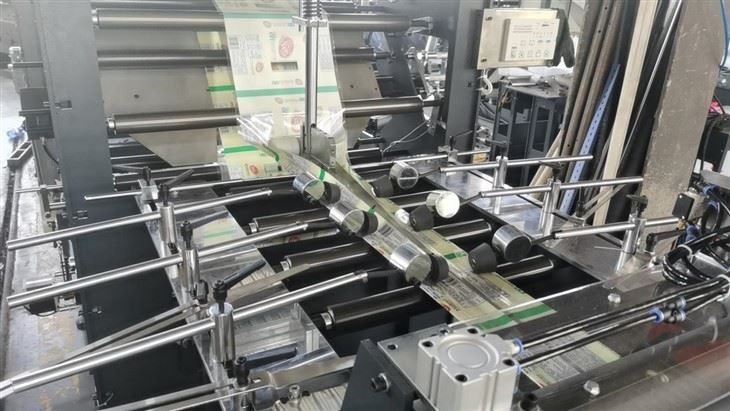

Four Side Sealing Bag Making Machine

Four side sealing bag making machine



Machine Introduction:

This machine suitable produce Middle sealing pouch,edge sealing pouch and four side sealing pouch from material different kninds of laminated film.

1. The whole machine is controlled by a central PLC control system with a man-machine. More stable performance, easy for operation and maintenance. Chinese and English interface languages can be shifted easily.

2. Constant auto-tension control for unwinding, LPC edge alignment, AC inverter constant speed auto material feeding.

3. Imported double servo-motor material dragging control system

4. Main motor for up-down sealing and pressing equipped with inverter.

5. PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.

6. Equipped with a Pneumatic multi-function auto punching device, trim cutting auto rewinding, and static eliminator.

7. Temperature adjustment range: 0~300℃.

8. Counter: quantity, batch accumulation, pre-set available.

9. Operation Method: by length fixation control and/or by photocell tracking control.

10. Punching device: working rhythm can be pre-set as continuous, interval, or stop, and punching time can be pre-set.

11. Material Skip Feeding: one to six times available.

12. Batch Conveying Function available, the batch quantity can be preset.

Q: What is pouch size and processing dirction

A:
