The process flow of a UV Coating Machine
A UV coating machine is a device that uses ultraviolet (UV) light to cure coatings, forming a strong, durable layer quickly. It is widely used in industries such as optics, new energy, electronic tapes, furniture, and packaging printing. The machine instantly cures the coating with a UV light source, offering higher efficiency than traditional coating machines, with improved coating adhesion, hardness, and wear resistance. Today, the editor from Haoyu will explain the process flow of the UV coating machine.
A UV coating machine is a highly automated "assembly line" system. The main goal is to uniformly coat a substrate with material and then cure it using UV light to form a high-performance layer. The entire process can be summarized in the following key steps:
1.Unwinding
Operation: The roll of substrate (such as plastic film, paper, metal foil, etc.) is mounted on the unwinding device.
Purpose: To provide a continuous and stable material supply for the subsequent coating process.
2.Tension Control and Edge Alignment
Tension Control: A precise system, such as a floating roller tension system, adjusts the tension of the substrate in real-time to ensure smooth operation and prevent wrinkles or breakage during subsequent steps.
Automatic Edge Alignment: An edge-alignment system detects the position of the substrate's edge, making real-time adjustments to ensure it always runs along the centerline. This is critical to achieving even coating.
3.Coating
Operation: The substrate enters the coating head area. Depending on the process requirements, the coating is evenly applied to the surface of the substrate via a transfer or extrusion die.
Key Points: Parameters like coating speed, coating viscosity, and die gap must be precisely controlled to ensure the coating thickness and uniformity meet the required standards.
4.Drying (or UV Curing)
Traditional Drying: In a hot air oven, the solvent evaporates through heating, and the coating solidifies.

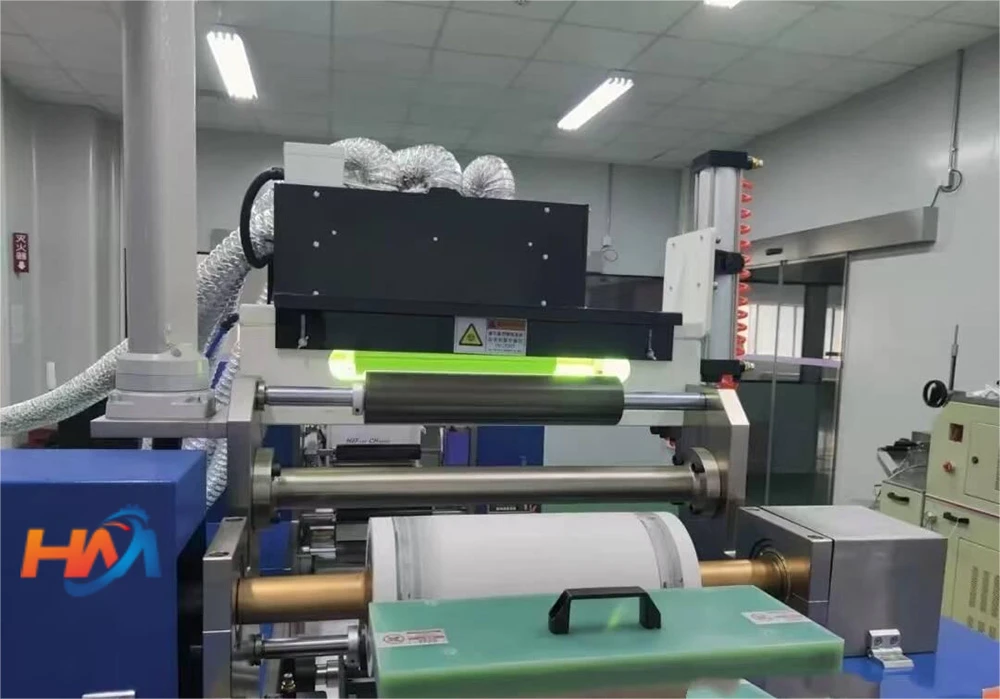

UV Curing: In the UV curing zone, the substrate passes under high-intensity UV lamps. The photo-initiators in the coating are activated, triggering rapid cross-linking polymerization of the resin and monomers. The liquid coating transforms into a solid state within seconds.
Core Advantage: The key benefit of the UV coating machine is highlighted here, where the process is extremely fast and energy-efficient.
5.Tension Control and Edge Alignment (Again)
Operation: After drying/curing, the substrate re-enters the tension control system and alignment device.
Purpose: Adjust the tension to ensure that the substrate is wound up neatly and to prepare for the final winding process.
6.Rewinding
Operation: The coated substrate is wound into a roll at a speed matching the unwinding process.
Key Points: The winding tension must be controlled to avoid damaging the coating or distorting the substrate.
Quality Inspection and Final Checks
Online Inspection: Modern machines often feature density testers, coating thickness gauges, and other online monitoring tools to check the quality of the coating during production.
Final Checks: Samples of the finished product are taken for inspection, checking for coating thickness, uniformity, adhesion, and other key indicators. If any issues are found, adjustments to the process parameters are made.
This is a simplified overview of the process, ensuring that UV coating machines provide efficient, high-quality coating solutions in various industries.
