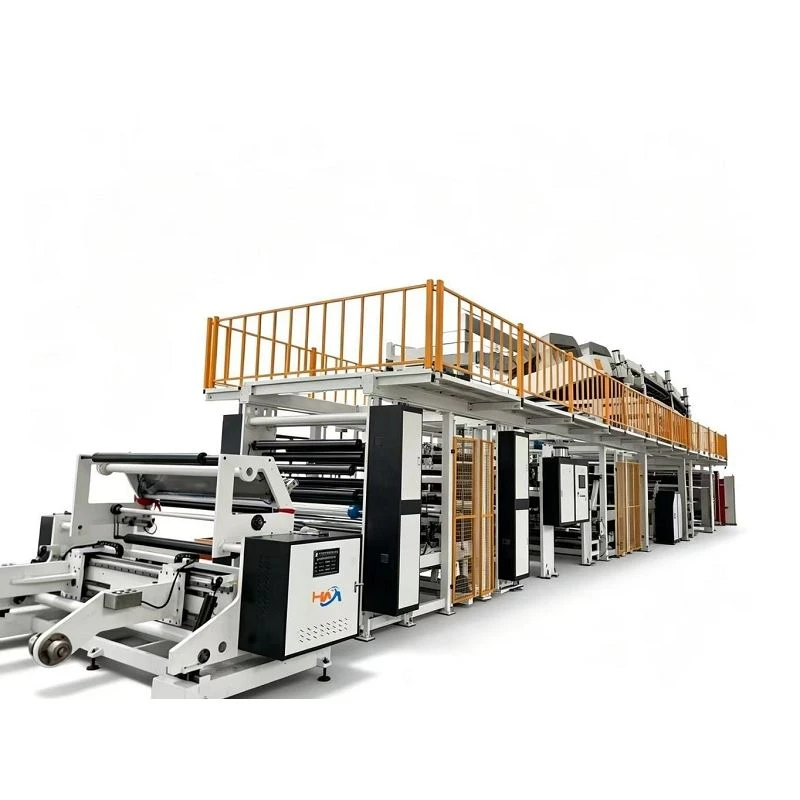

HY-TB1500 Precision Hot Lamination & Coating Line



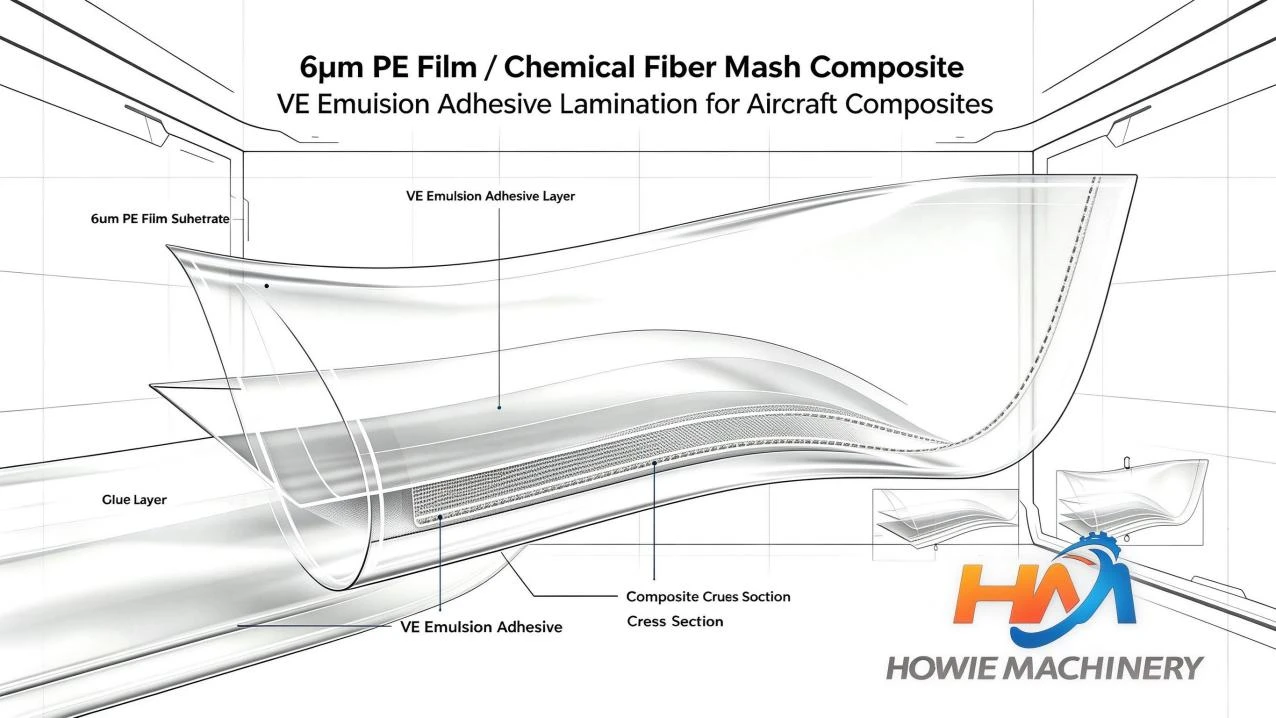

The HY‑TB1500 Precision Hot Lamination & Coating Line is a high‑end customized production line dedicated to manufacturing advanced composite films. It is specially developed for laminating ultra‑thin PEEK film down to 6 μm with chemical fiber mesh by adopting vinyl ester (VE) emulsion adhesive. Equipped with ceramic micro‑gravure coating technology and full‑closed‑loop tension control system, the equipment achieves superior coating uniformity and stable interlayer bonding strength. It can process multiple substrates including high‑performance engineering films, aluminum foil, mesh fabric and paper. Suitable for producing aircraft interior panels, sandwich structural panels, precision filter materials and high‑temperature insulation parts, this customizable coating‑lamination line meets strict production requirements of aerospace, new energy, automobile and high‑end industrial material industries.





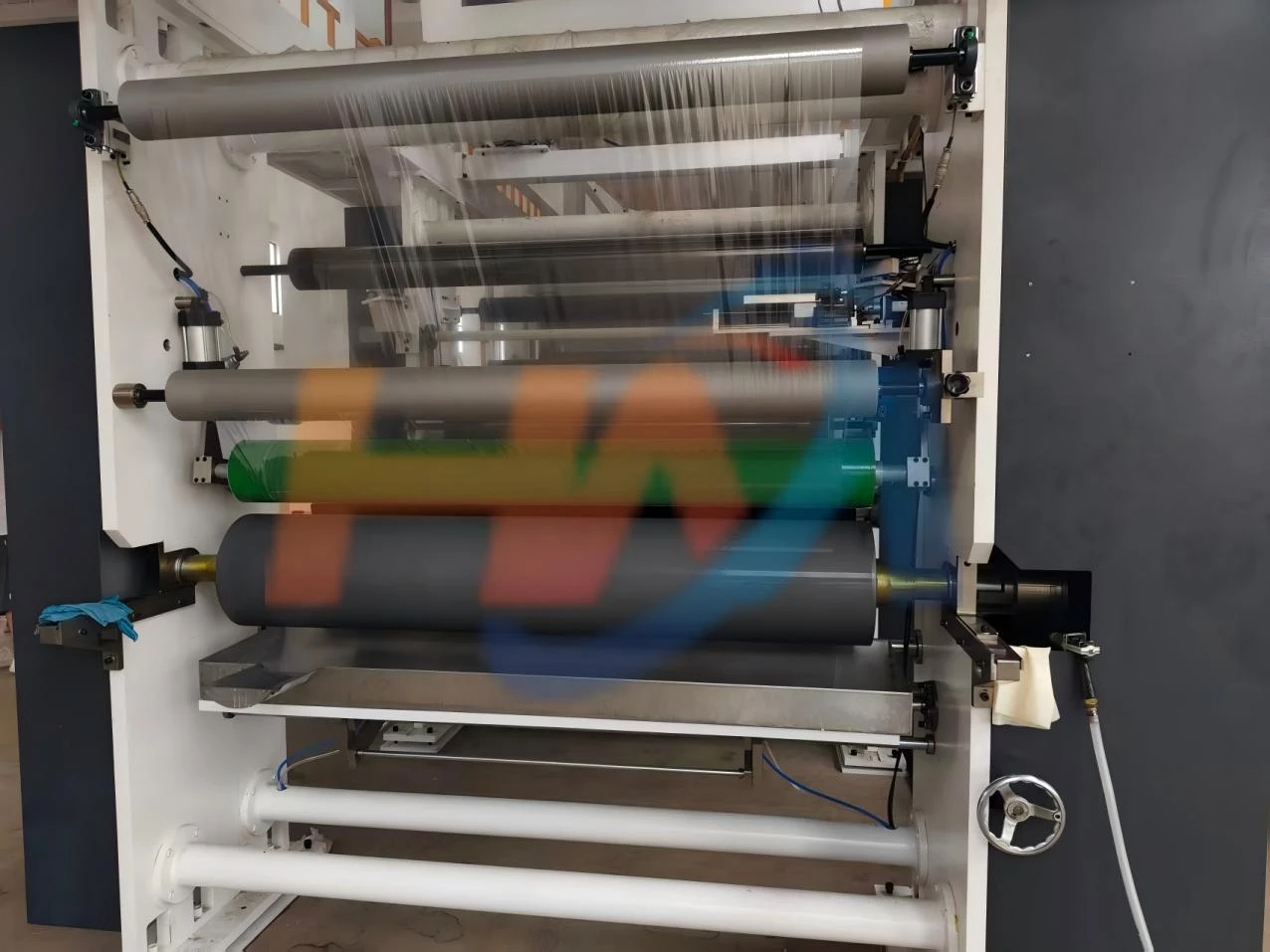

· Ceramic coating roll: Precision ceramic micro‑gravure roll delivers outstanding coating uniformity, great wear‑resistance, chemical resistance and stable performance under high‑temperature working conditions.

· Ultra‑thin substrate processing: Handles ultra‑thin substrates as thin as 6 μm such as PEEK, PE, PET, PI, maintaining stable web tension without wrinkling.

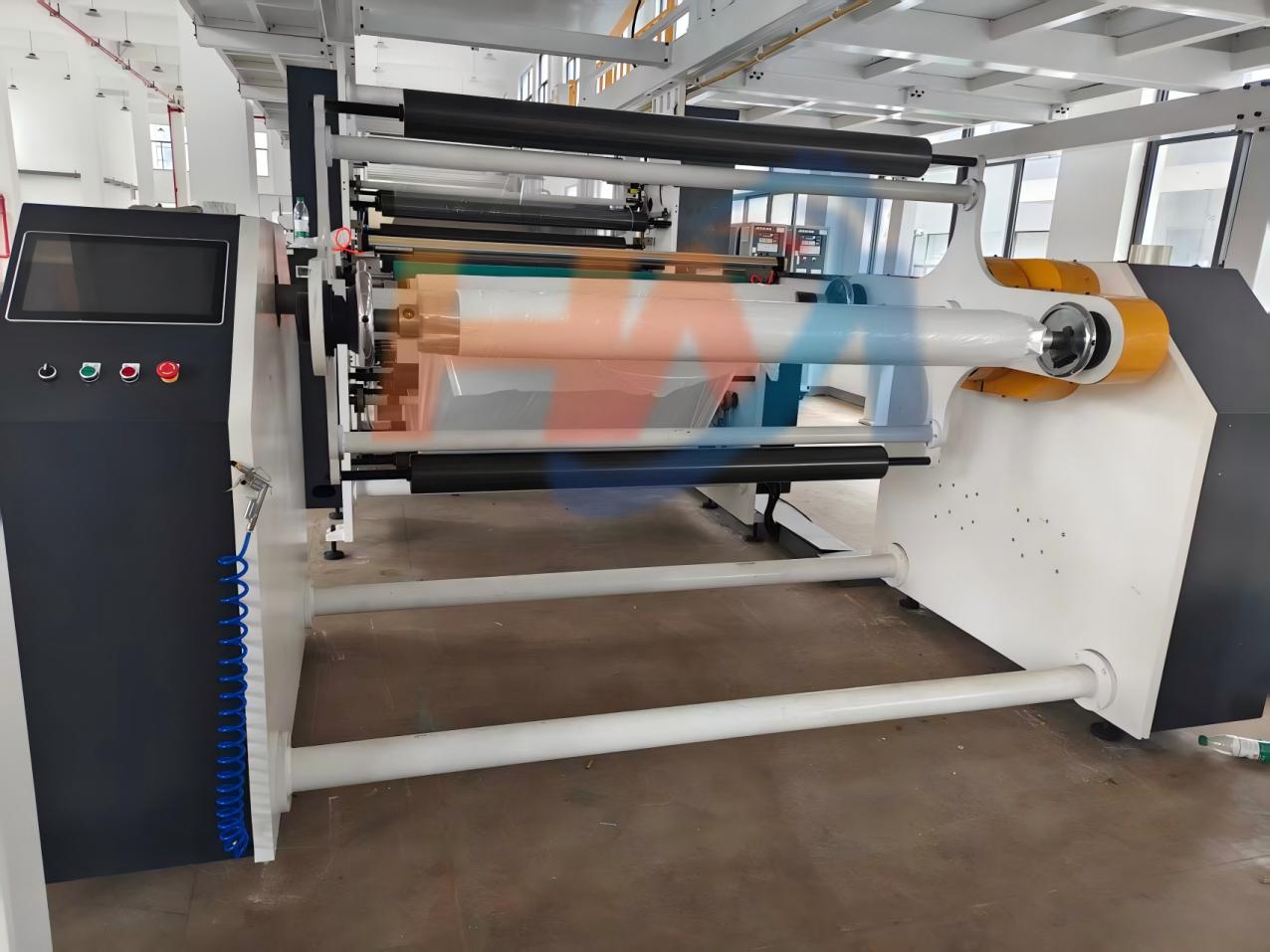

· Shaftless unwind station: Pneumatic shaftless unwinding for maximum roll diameter Ø800 mm, enabling fast roll loading and reducing manual workload.

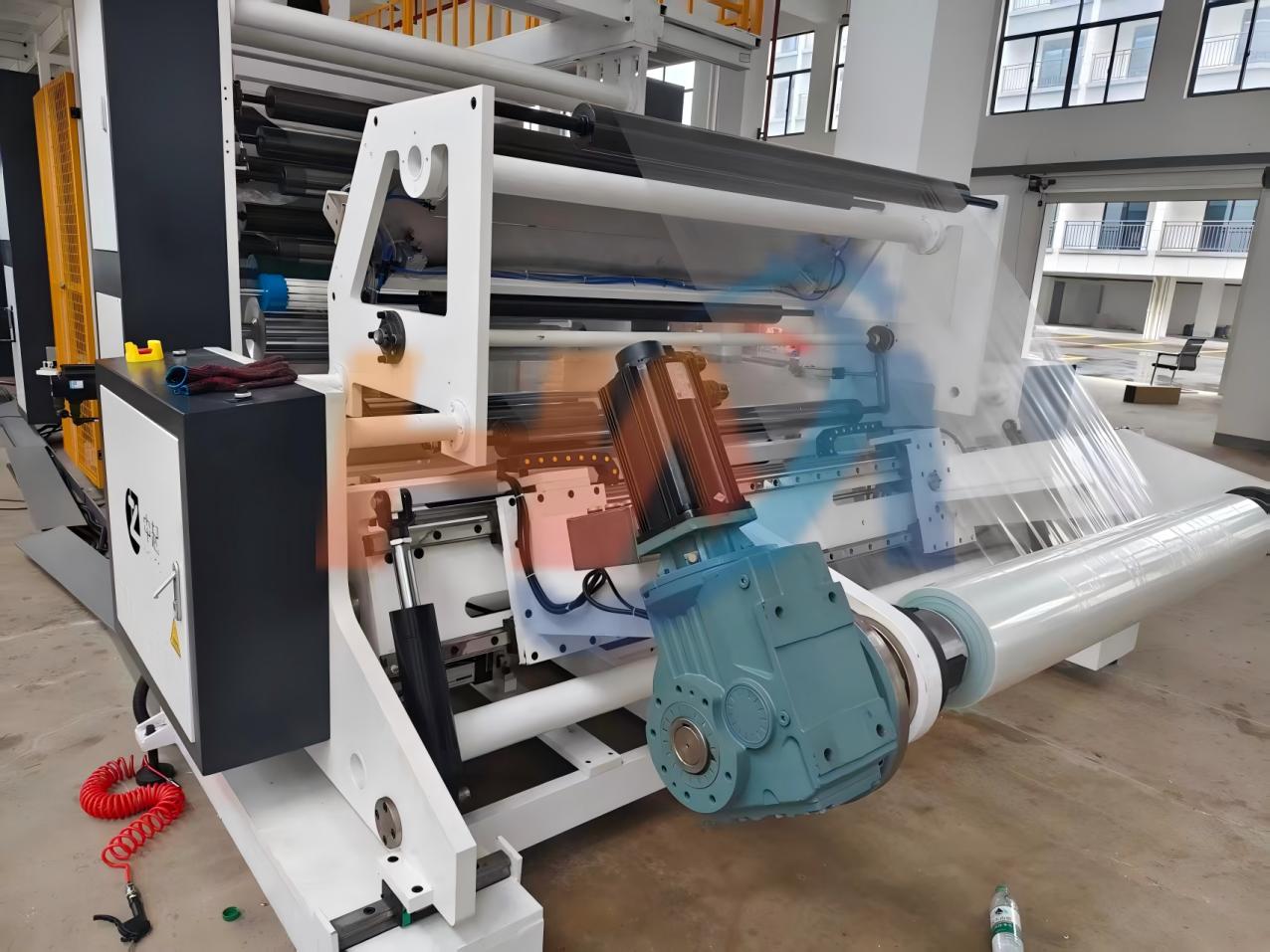

· Fully automatic turret rewind: Double‑station turret automatic rewinding supports seamless flying splice without production stop, ensuring stable rewinding tension and higher throughput.

· Multi‑zone independent temperature‑controlled oven: Segmented heating zones realize precise control for solvent evaporation and adhesive curing and avoid substrate thermal deformation.

· Closed‑loop tension control: Closed‑loop tension feedback on unwinding, intermediate and rewinding sections to keep ultra‑thin and fragile web flat and wrinkle‑free.

· PLC+HMI control system: Full touch‑screen operation with formula storage, speed synchronization and real‑time production monitoring. Machine parameters including temperature, tension, speed, roller state and alarm information are centrally displayed via RS485 communication.

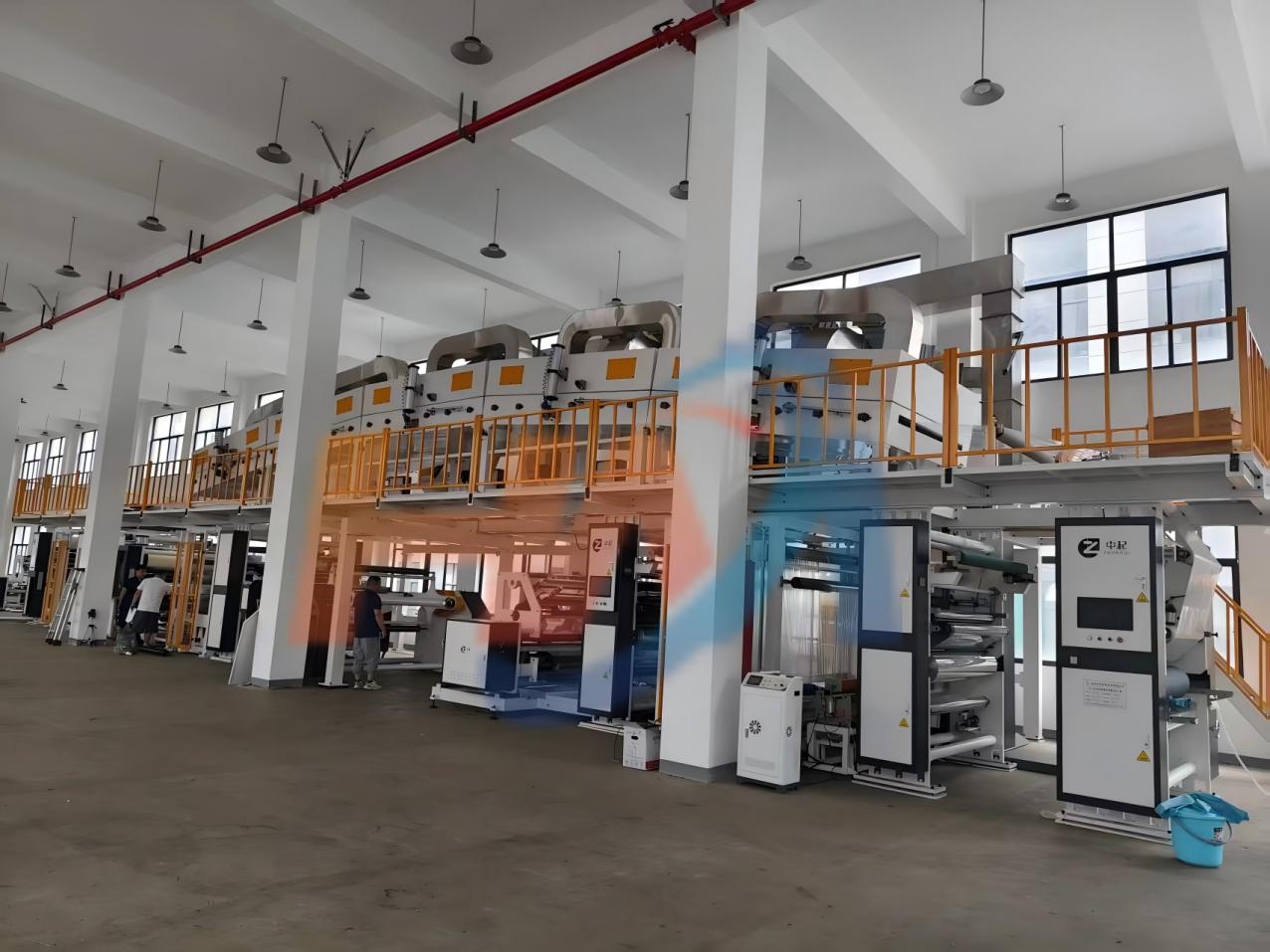

· Safety protection design: Orange safety guardrail, emergency stop buttons and interlock safety doors comply with CE safety standards.

· Optional coating mode: Supports ceramic micro‑gravure or slot‑die coating to match different adhesive and product demands.

· Automatic EPC web guiding: Edge position correction for unwinding and rewinding position deviation adjustment.





Item	HY-TB1500
Model	HY-TB1500
Effective Coating Width	1300 mm, max 1500 mm customizable
Coating Method	Ceramic micro-gravure / Slot-die (customizable)
Coating Roll Material	Ceramic-coated roll, high wear-resistant & chemical-resistant
Supported Adhesive Type	Water-based (VE emulsion, acrylic, PU), Solvent-based, Hot-melt
Applicable Substrates	PEEK, PE, PET, PI, CPP, BOPP, Aluminum foil, Paper, Mesh fabric
Minimum Processable Film Thickness	6 μm (PEEK and other ultra-thin films)
Production Line Speed	5-80 m/min, variable frequency adjustable
Oven Length	18-30 m customizable, multi-zone design
Oven Temperature Range	Room temperature ~150℃, independent zone temperature control
Unwind Mode	Pneumatic shaftless unwinding
Max Unwind Roll Diameter	Ø800 mm
Rewind Mode	Fully-automatic double-station turret rewind
Max Rewind Roll Diameter	Ø800 mm
Tension Control	Closed-loop automatic control with load-cell feedback
Web Guiding	Automatic EPC edge guide for unwind & rewind section
Control System	PLC + HMI touch screen, recipe storage, data logging
Communication Protocol	RS485, centralized data monitoring on HMI
Power Supply	380V / 50Hz 3-Phase, customizable for local standards
Installed Power	~120 kW (varies with oven length & configuration)
Overall Dimension	~35000 × 3500 × 4500 mm (L×W×H), customizable
Machine Weight	~35000 kg (depends on configuration)



1. Excellent Coating Consistency

Ceramic micro‑gravure coating roller achieves micron‑level uniform coating effect, stable bonding performance for aerospace‑grade composite materials.

2. Reliable Ultra‑thin‑film Processing Capacity

Closed‑loop full‑line tension control solves wrinkling, stretching and offset problems of 6 μm ultra‑thin high‑performance films.

3. Non‑stop Continuous Production

Automatic turret rewinding realizes flying splice roll change without line shutdown, greatly improving continuous production efficiency.

4. High‑flexibility Customized Solution

Coating structure, oven length, working width and adhesive system can be adjusted according to customer's substrate and finished‑product requirements.

5. Precise Multi‑zone Thermal Curing

Segmented independent temperature oven accurately controls evaporation and curing process to prevent substrate deformation and guarantee composite quality.

6. Intelligent Centralized Operation

Touch‑screen HMI stores multiple product recipes; real‑time monitoring of tension, temperature, speed and fault alarm reduces operation difficulty.

7. Complete Safety Protection

Safety guard, interlock doors and emergency‑stop system satisfy CE safety specification for industrial continuous production lines.





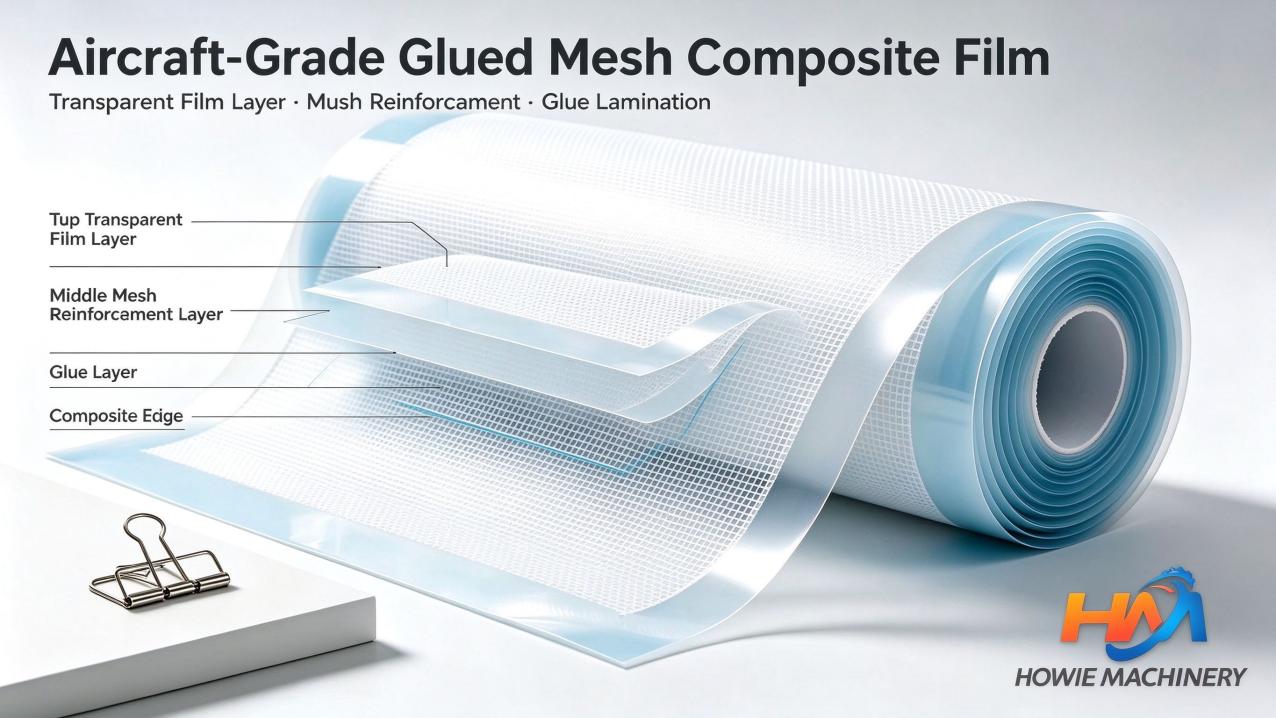

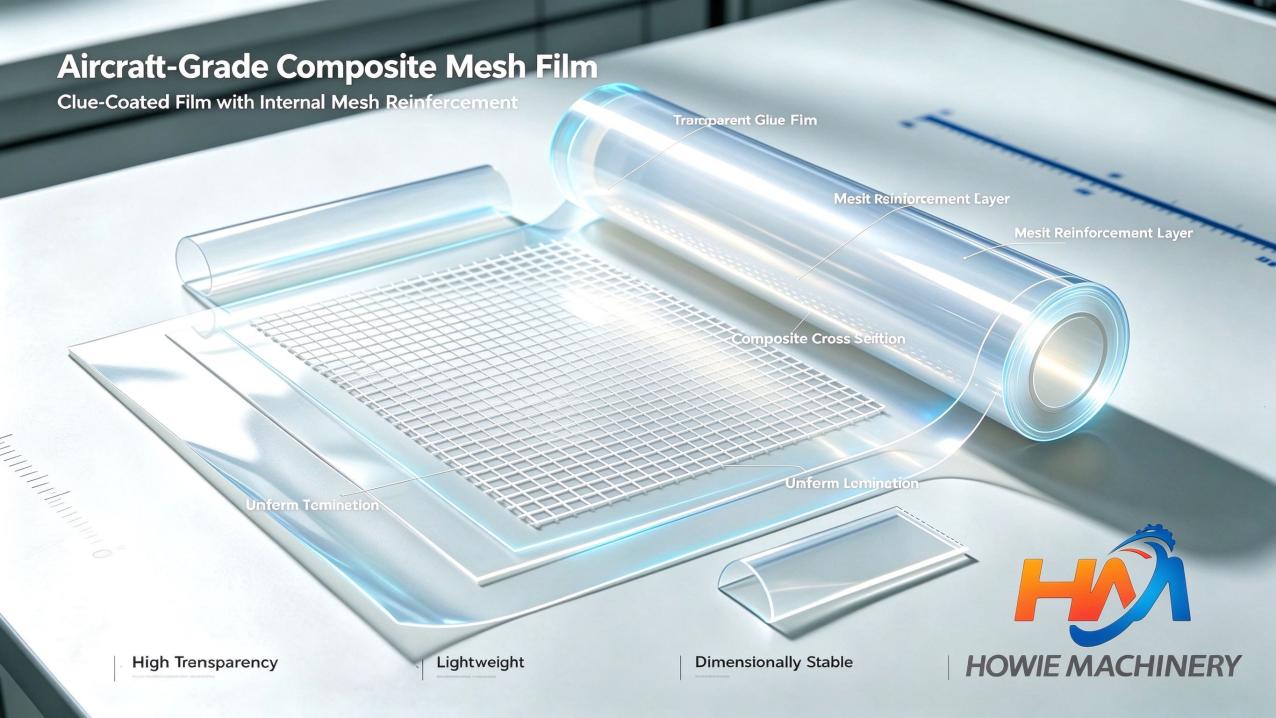

This hot lamination and coating line is oriented to high‑performance composite material manufacturing, widely used for producing below products:

·Aircraft interior decorative & structural panels

·Honeycomb / foam core sandwich panel surface materials

·Aircraft ceiling, wall and cargo compartment liners

·Precision filtration media and filter membranes

·High‑temperature electrical insulation components

·Automotive lightweight composite parts

·High‑performance sports & leisure composite goods

·Industrial protective films and special adhesive tape
