Draw Tape Garbage Bag Making Machine
video
Draw Tape Garbage Bag Making Machine

Draw Tape Garbage Bag Making Machine

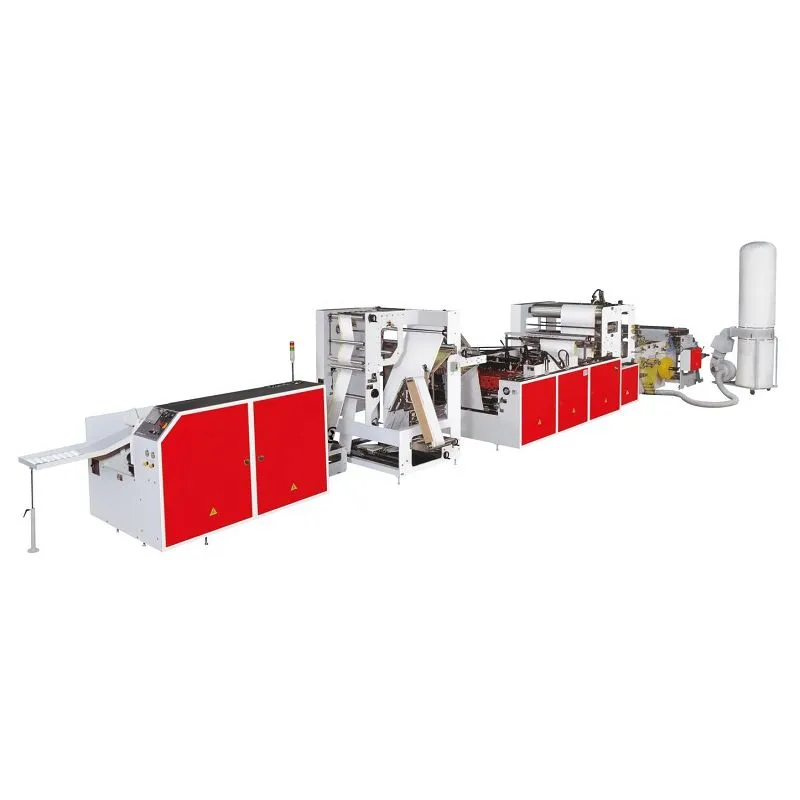

HYCS-1000 is a multi-function machine that makes both draw-tape garbage bags and bottom-sealing bags on a roll. The machines are double sealing knives with sway unit design, YASKAWA motion control computer system, using 13 pcs servo motors control, which is suit for printing and non-printing bag making. The material of the bag is HDPE, LDPE.

Draw Tape Garbage Bag Making Machine

product-800-800



Machine Introduction:

HYCS-1000 is a multi-function machine that makes both draw-tape garbage bags and bottom-sealing bags on a roll. The machines are double sealing knives with sway unit design, YASKAWA motion control computer system, using 13 pcs servo motors control, which is suit for printing and non-printing bag making. The material of the bag is HDPE, LDPE.



Main Features:




1.Suit for HDPE,LDPE
2.Overlap bags or perforation bags 2 options
3.Top hot air sealing design
4.Shuttle system+double sealing knives system
5.Twice folded device
6.Automatically convey the rolling bag to collecting table
7.13 set servo motors control whole machine



Technical Parameter:




Model

HYCS-1000

Bag witdth

1000mm

Bag length

900mm

Production speed

150pcs/min×2 sealing knives

Film thickness

15-50micron per layer

Unwider film size

Φ600mm

Roll change speed

Max.10pcs

Witdth of draw tape

100mm

Draw tape roll diameter

600mm

Roll width

300mm

Roll diameter

Φ150mm

Total power

25kw

Air consumption

5HP

Machine weight

5500kg

Machine dimension

L15000×W2000×H2100mm



FAQ:




Q: What is a fully automatic draw tape garbage bag-making machine?

A: It is a professional machine used to automatically produce draw tape garbage bags from raw materials such as LDPE or HDPE plastic films.



Q: What are the advantages of using a fully automatic draw tape garbage bag-making machine?

A: One of the main advantages is increased efficiency. It can produce a large number of high-quality bags in a short amount of time. Additionally, it reduces labor costs as it requires fewer workers to operate it. It also reduces waste as it is able to use raw materials more efficiently.



Q: Can the machine produce bags of different sizes and shapes?

A: Yes, the machine is highly customizable and can produce bags of different sizes and shapes according to specific requirements.



Q: Is it easy to operate the fully automatic draw tape garbage bag-making machine?

A: Yes, the machine is user-friendly and easy to operate. It comes with a control panel that allows for easy adjustments and monitoring of the production process.



Q: How reliable is the machine?

A: The machine is made from high-quality materials and is designed to last for many years with proper maintenance. Additionally, it comes with a warranty and technical support to ensure any issues are resolved quickly.



Q: Can the machine be used for other purposes besides producing draw tape garbage bags?

A: No, the machine is specifically designed for producing draw tape garbage bags and cannot be used for other purposes. However, there are other machines available for producing other types of bags.



Overall, a fully automatic draw tape garbage bag-making machine is an efficient and reliable tool for businesses looking to produce high-quality bags in large quantities. With its user-friendly design and customizable capabilities, it can provide a cost-effective solution to bag production needs.
