Machine operation video：

Machine Introduction:

The Fully-Electric Automatic Waybill Labeling Packing Machine is a plug-and-play e-commerce packing equipment specially designed for pre-opened PE roll courier bags. It adopts full-electric driving without air compressor requirement, equipped with 7-inch touch screen for easy parameter setup. This machine integrates automatic labeling, waybill processing and heat sealing in one unit, supporting multiple sealing control modes including gesture sensor, single-hand control and dual-hand control. Two models are available to satisfy different output and functional requirements for online-shop order packing. It works stably with PE pre-opened roll bags, greatly improving packing efficiency for logistics fulfillment centers.

Key Features:

· Fully‑electric driving design, plug‑and‑play, no air compressor needed.

· High packing efficiency, max speed up to 1500 pieces per hour under labeling mode.

· 7‑inch touch screen for intuitive parameter setting.

· Support pre‑opened PE roll‑fed courier bags for daily e‑commerce packing.

· Multiple sealing control modes: gesture sensor, single‑hand control, dual‑hand control.

· Optional working modes: with waybill labeling / without waybill labeling.

· Stable roll bag load capacity, compatible with common thickness of 4‑8 micron PE film.

· Model 60‑ERP version is additionally equipped with industrial all‑in‑one computer, supporting barcode scanning and automatic waybill printing.

· Mobile casters for convenient position adjustment on workshop floor

Technical Parameter:

Model	45 Type Fully-Electric Automatic Labeling Packing Machine	60-ERP Fully-Electric Automatic Labeling Packing Machine
Power Supply	110V/220V 50-60HZ	110V/220V 50-60HZ
Power	0.5KW	1.2KW
Max Packing Speed	1500 pcs/hour (labeling mode)	1500 pcs/hour (MAX)
Power Source	Fully electric, plug-and-play	Fully electric, plug-and-play
Display Screen	7-inch touch screen	7-inch touch screen
Computer Configuration	-	All-in-one industrial computer, mouse & keyboard
Waybill Box Dimension	L195mm*W115mm	-
Applicable Waybill Size	Length 30-170mm, Width 40-100mm	Width 50-100mm; Length 100-200mm
Applicable Consumables	PE pre-opened roll bags	PE pre-opened roll bags
Applicable Roll Bag Size	Bag length 150-700mm, Bag width 100-450mm	Bag width 130-570mm, Bag length 200-550mm
Applicable Roll Bag Thickness	4-8micron (0.04-0.08mm)	4-8micron (0.04-0.08mm)
Max Roll Bag Loading Weight	24-26KG	24-26KG
Worktable Height	900mm (with casters)	830mm (with casters)
Overall Dimension	L780mmW980mmH1360mm	L1600mmW940mmH1630mm
Net Weight	100KG	180KG
Core Functions	Automatic labeling, heat sealing	Barcode scanning, automatic waybill printing, automatic labeling, heat sealing
Labeling Modes	Optional: with waybill / without waybill	Optional: with waybill / without waybill
Sealing Control Modes	1.Gesture sensor; 2.Single-hand control; 3.Dual-hand control	1.Gesture sensor; 2.Single-hand control; 3.Dual-hand control

Advantages

1. Plug‑and‑Play Fully‑electric Structure

Pure‑electric design removes requirement for air compressor, easy site deployment for warehouses and small e‑commerce workshops.

2. High‑speed Order Packing Performance

Maximum throughput reaches 1500 pieces per hour, effectively reducing manual packing labor cost for e‑commerce fulfillment.

3. Flexible Multi‑mode Sealing Operation

Gesture sensing, single‑hand and dual‑hand control modes are selectable to fit different operator working habits, dual‑hand mode ensures operation safety.

4. Dual‑model Solution for Different Demands

Compact 45‑type for basic auto‑label & seal task; 60‑ERP upgraded version supports barcode scan and automatic waybill printing for higher‑end warehouse management.

5. Wide Compatibility for PE Pre‑opened Roll Bags

Covers mainstream size range of e‑commerce pre‑opened courier bags, suitable for 0.04‑0.08mm thickness roll‑bag materials.

6. User‑friendly Human‑machine Interaction

7‑inch touch screen for quick parameter adjustment, mobile casters support flexible machine relocation inside workshop.

Application fields

This machine is suitable for e‑commerce order fulfillment and logistics packaging with PE pre‑opened roll courier bags, mainly for below scenarios:

Online‑shop daily order packing
E‑commerce warehouse fulfillment operation
Express courier pre‑opened bag packaging
Small‑and‑medium logistics center auto‑packaging
Other scenarios requiring automatic labeling and heat‑sealing with roll‑type PE courier bags

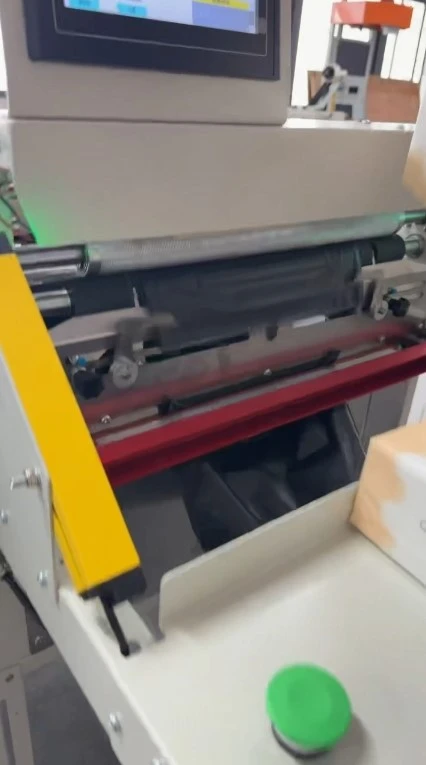

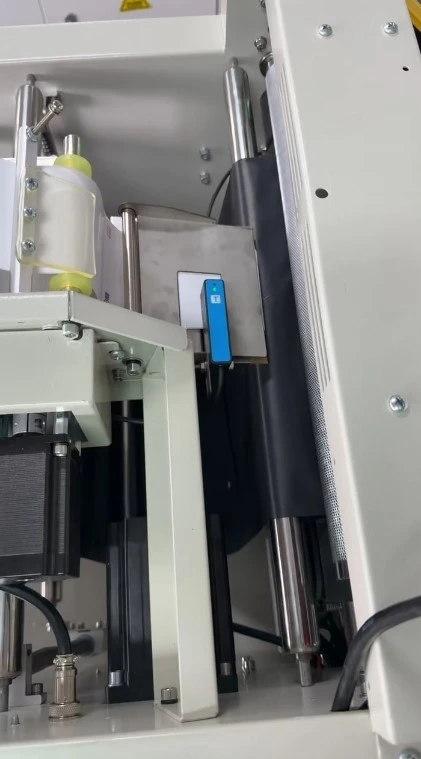

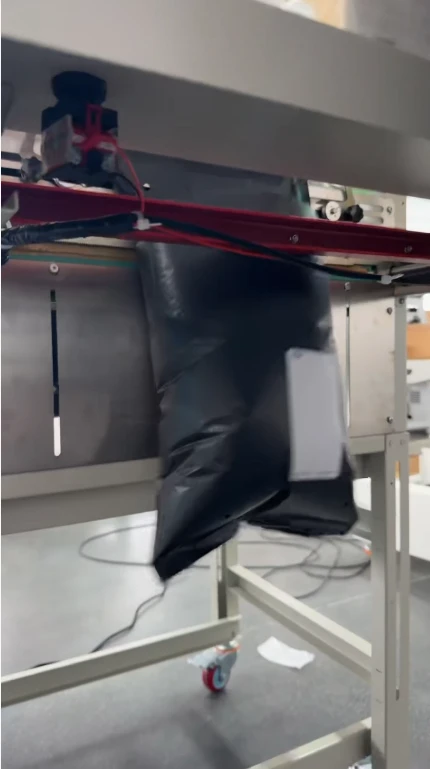

Machine parts

Packaging and delivery

FAQ

Q1：What is the difference between 45‑Type and 60‑ERP model?

A：45‑Type is compact economical model, supports auto‑labeling and sealing only. 60‑ERP adds industrial all‑in‑one computer, supports barcode scanning and automatic waybill printing, with larger applicable bag size range.

Q2：Do I need air compressor for these two models?

A：No. Both are fully‑electric, plug‑and‑play, no air source required.

Q3：What is the maximum packing speed?

A：Max 1500 pieces per hour under labeling mode for both models.

Q4：What consumable material does the machine use?

A：PE pre‑opened roll courier bags, thickness 4‑8 micron (0.04‑0.08mm).

Q5：What sealing control modes are available?

A：3 modes optional: gesture sensor, single‑hand control, dual‑hand control. Dual‑hand mode improves operation safety.

Q6：Can I run machine without printing & pasting waybill?

A：Yes, both models support two modes: with waybill / without waybill labeling.

Q7：What is the max loading weight for roll bag?

A：Both models support 24‑26KG roll bag load.

Q8：What power voltage is supported?

A：110V / 220V, 50‑60HZ, suitable for global e‑commerce warehouse.

Q9：What is applicable bag dimension range?

A：45‑Type: bag width100‑450mm, bag length150‑700mm.
60‑ERP: bag width130‑570mm, bag length200‑550mm.

Q10：Can machine be moved around workshop?

A：Yes, both equipped with mobile casters for position adjustment.
