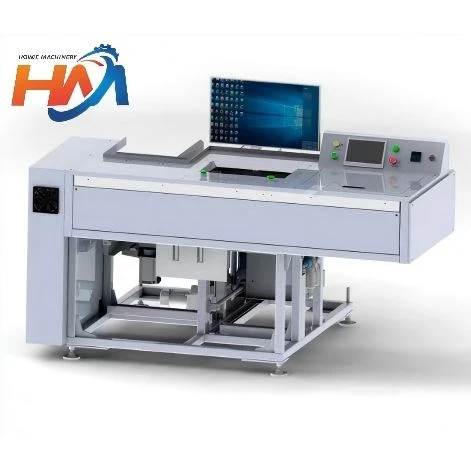

Fully Automatic Bubble Bag Labeling & Packing Machine

Machine operation video：



· Special‑purpose machine for air bubble bag packing, stable for bubble cushion material processing.

· Max packing speed reaches 900 pieces per hour for high‑volume order processing.

· Equipped with all‑in‑one industrial computer, supporting barcode scanning and automatic waybill printing.

· Multiple sealing control modes: gesture sensor, single‑hand control, dual‑hand control.

· Adopts pat labeling mode for firm label attachment on bubble bag surface.

· Supports mainstream specification bubble bags with thickness range 80‑150.

· Stable mechanical structure with high load‑bearing capacity for long‑time continuous production.

· Requires compressed air source of 0.6‑0.8MPa for normal running.





Item	QP3545
Power Supply	AC220V/50‑60Hz
Power	3.5Kw
Packing Speed	900 pieces per hour
Air Source Requirement	0.6‑0.8MPa
Computer Configuration	All‑in‑one industrial computer, mouse and keyboard
Applicable Waybill Size	76130mm / 100100mm / 100*150mm
Applicable Consumables	Air bubble bags
Applicable Bubble Bag Size	Width: 180‑350mm, Length: 250‑450mm
Applicable Bubble Bag Thickness	80‑150
Worktable Height	1050mm
Overall Machine Dimension	L1750mmW1750mmH13500mm
Net Weight	380kg
Functions	Barcode scanning, automatic waybill printing, automatic labeling, automatic sealing
Labeling Mode	Pat labeling
Sealing Control Modes	Gesture sensor / Single‑hand control / Dual‑hand control





1. Professional for Bubble Bag Packaging

Optimized mechanical structure adapts to the soft and uneven surface of air bubble bags, solving labeling and sealing difficulties of cushion packaging materials.

2. Integrated Automatic Workflow

Realizes barcode scanning, waybill printing, labeling and sealing in one station, greatly cutting manual packing steps for e‑commerce warehouses.

3. Diverse Safe Operation Modes

Gesture sensor, single‑hand and dual‑hand control are optional; dual‑hand mode improves operation safety for high‑intensity continuous work.

4. Reliable Pat Labeling Technology

Pat labeling method ensures firm adhesion of shipping labels on bubble bags, avoiding label falling off during logistics transportation.

5. Stable Continuous Production Performance

Heavy‑duty body structure with net weight of 380kg guarantees stable running under long‑hour high‑duty working condition.

6. Wide Material Compatibility

Covers common sizes and thickness grades of e‑commerce air bubble bags, suitable for packing fragile, shock‑proof goods.





This machine is designed specially for air‑bubble‑bag‑based e‑commerce packing scenarios, applicable for:

• E‑commerce warehouse shock‑proof order fulfillment
• Logistics packaging for fragile articles
• Air bubble envelope automatic labeling & sealing
• Shock‑resistant goods automatic packing
• Other mass‑production scenarios for bubble bag packaging
