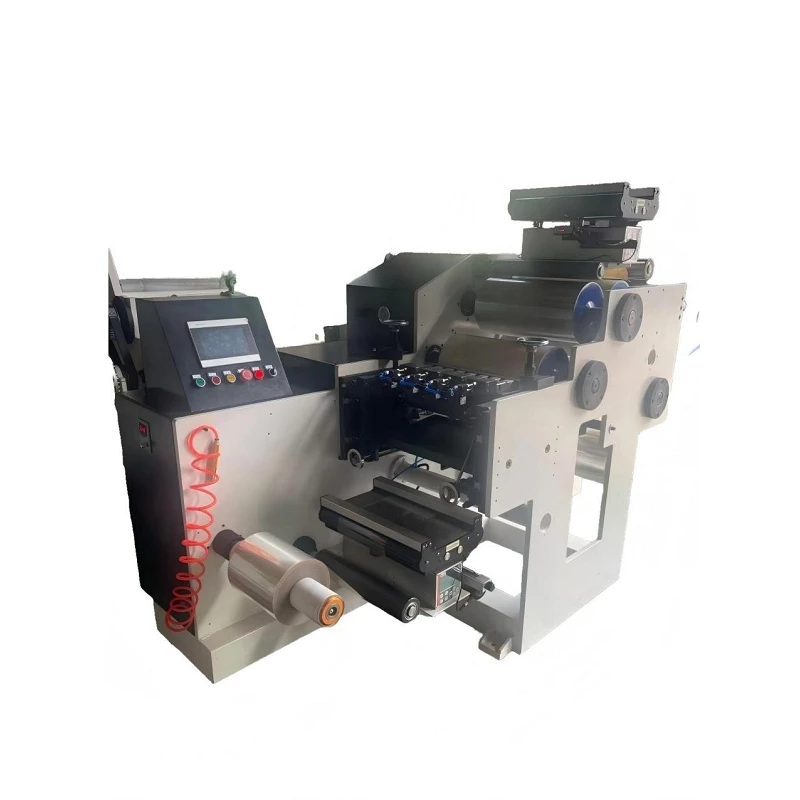

Mini High-Speed Spray Coating Machine

Mini High-Speed Spray Coating Machine

Machine operation video：

Machine introduction:

Mini High-Speed Spray Coating Machine is designed for precision coating applications in industries such as label production, adhesive tapes, zippers, and hot melt coating.It features stable high-speed operation and precision spray coating technology, delivering fine atomized, uniform film with controllable thickness while boosting production efficiency.It is ideal for R&D and small-scale production, allowing the testing of various adhesives or the development of new products. Featuring a single-arm structure and an auxiliary cantilever support frame, it offers easy material handling and an ideal solution for single-operator use. It can coat widths up to 500mm and is highly adaptable to diverse production needs.



Main features:

Compact Design: Space-saving and suitable for small-scale and R&D environments.

Easy Operation: User-friendly design for easy loading and unloading of materials.

Adjustable Coating Width: Can be set to a maximum of 500mm, catering to different production requirements.

Fiberized Spray Coating: Adopts fiberized spray technology to form a uniform fibrous adhesive network, delivering strong initial tack with minimal material waste.

Versatility: Capable of coating a wide range of substrates including paper, film, and fabrics.

Speed Control: Adjustable speed between 20 to 100m/min to match different coating tasks.

High-Quality Coating: Precisely controls the coating weight from 5g/m² to 50g/m².



Technical parameter:

Model	HY-200	HY-320	HY-500
Width of Roller	240mm	370mm	550mm
Max Coating Width	200mm	320mm	500mm
Max Substrate Diameter	600mm	600mm	600mm
Paper Core Diameter	76mm	76mm	76mm
Unwind Device	2 sets	2 sets	2 sets
Rewind Device	1 set	1 set	1 set
Coating Weight	5-50g/m²	5-50g/m²	5-50g/m²
Max Speed	30-100m/min	30-100m/min	30-100m/min
Length	2200mm	2200mm	2200mm
Width	980mm	1080mm	1180mm
Height	1300mm	1300mm	1300mm
Max Power	8KW	9.5KW	11KW





Advantage：

Precision Coating: Offers high-accuracy control over coating thickness, ensuring consistent product quality.

Wide Thickness Range: Delivers flexible coating thickness from thin to thick films, and is compatible with heat-sensitive substrates that cannot withstand high-temperature coating processes.

Fiberized Spray Coating: Adopts fiberized spray technology to dispense adhesive in fine filament form, creating a uniform fibrous adhesive network with strong initial tack, reduced material waste and excellent adhesion on uneven substrates.

High-Speed Performance: Maintains stable coating quality at high operating speeds, effectively boosting production efficiency and shortening R&D cycles.

Space-efficient: Its compact design allows it to fit in smaller production spaces.

User-Friendly: Easy to operate with a simple setup and one-person operation.

Flexibility: Adaptable to a wide range of substrates, from paper to film and textiles.

Reliable Performance: Designed for high efficiency and long-lasting use, with minimal maintenance.

Application fields：

Label Production: Ideal for applying hot melt adhesives to labels, including high-performance labels.

Adhesive Tapes: Used for producing various types of adhesive tapes.

Zipper Production: Coating adhesives for zippers and fasteners.

Hot Melt Coating: Versatile enough for testing and developing new adhesive formulations or coating products.

R&D & Small Batch Production: Perfect for industries requiring small batch runs and R&D purposes, particularly in adhesive development.

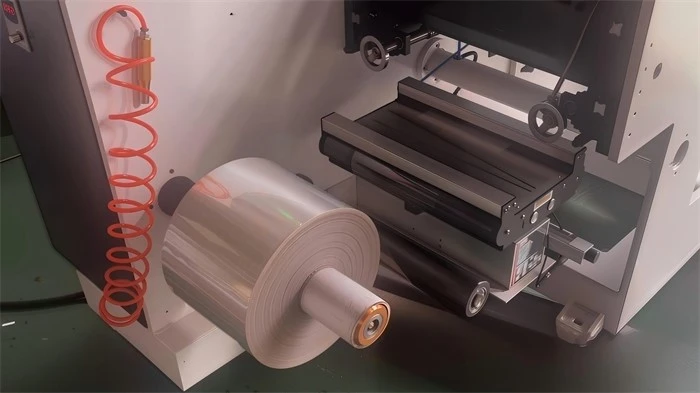

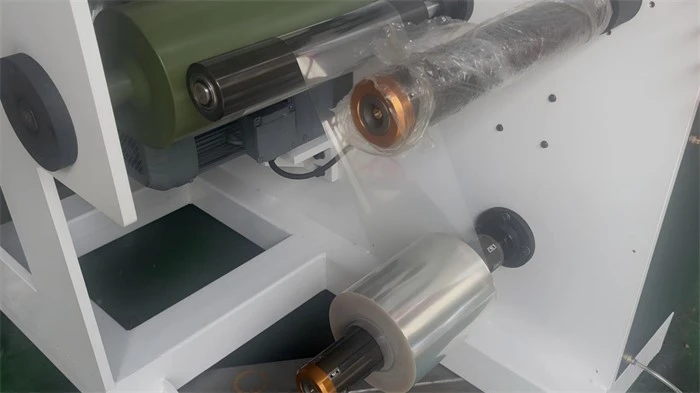

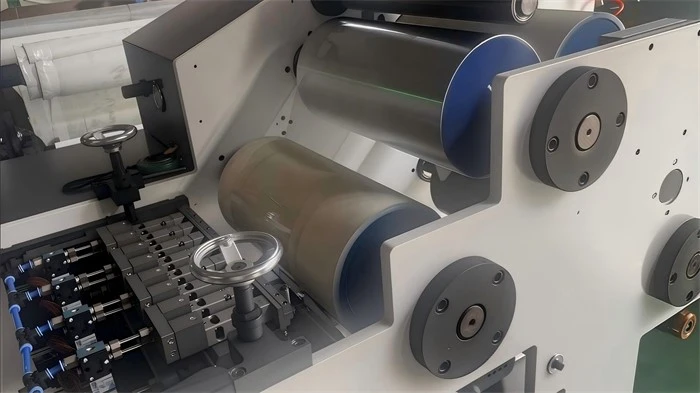

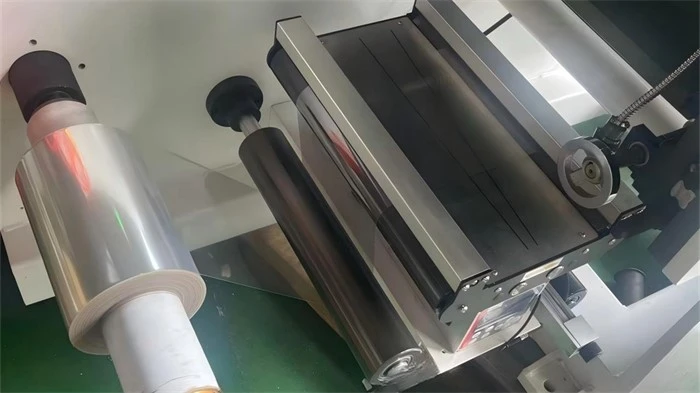

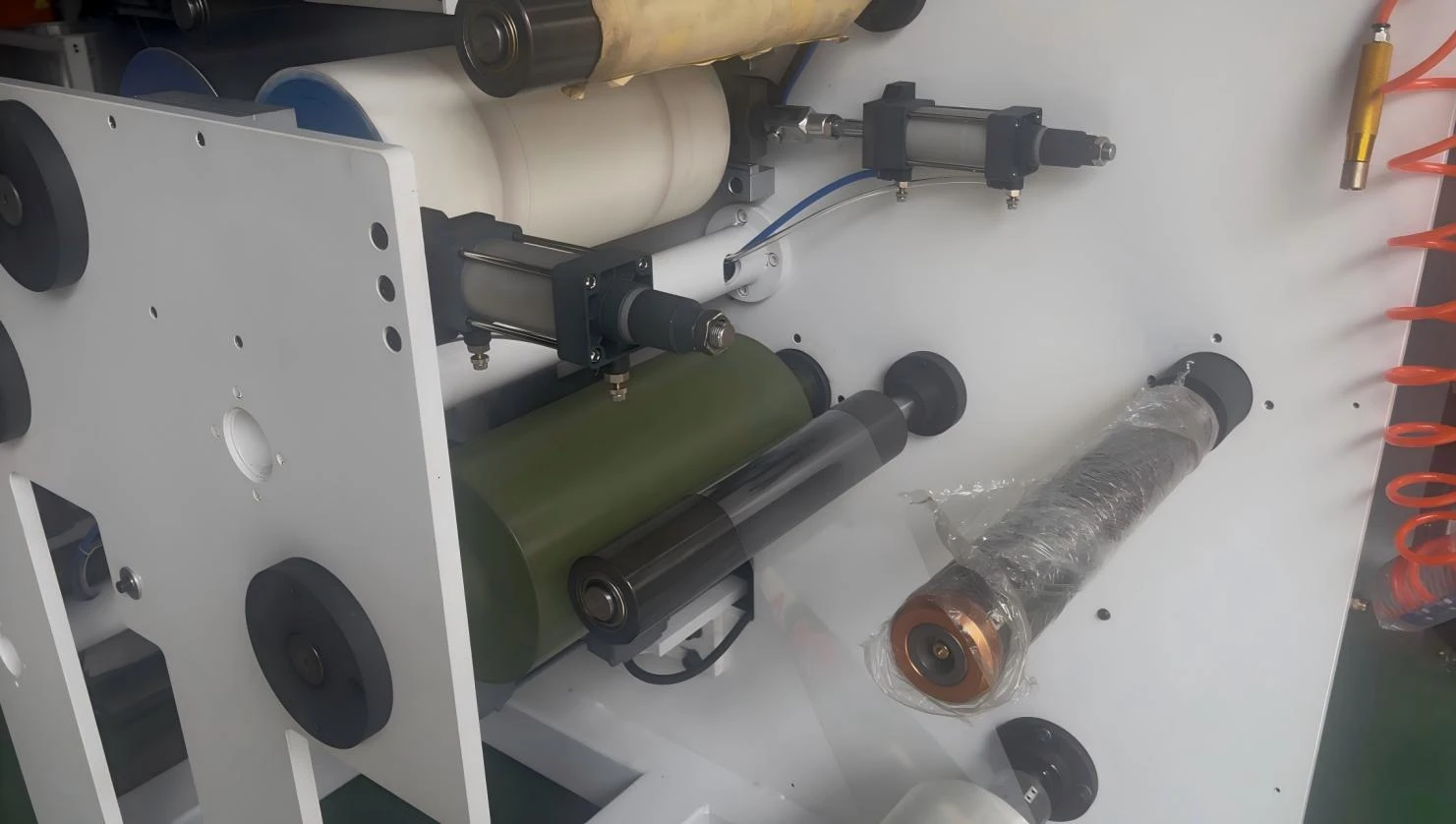

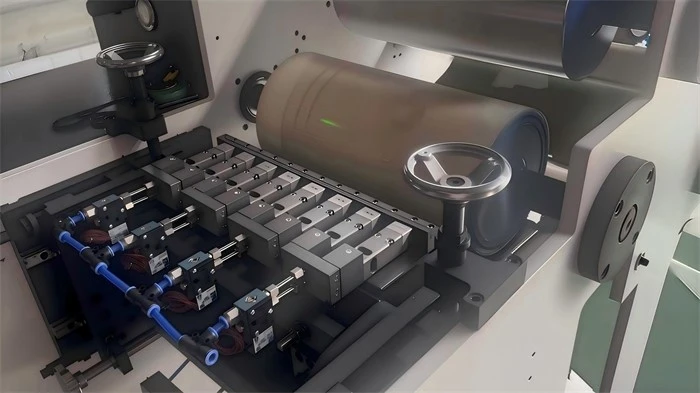

Detail photo:

Packaging and delivery:

FAQ:

1.What materials can be coated with this machine?

The machine can coat various materials including paper, film, and textiles.



2.How can I adjust the coating thickness?

The coating thickness can be adjusted by setting the coating quantity between 7g/m² and 120g/m².



3.What is the maximum speed of the machine?

The machine can operate at speeds between 50m/min and 150m/min, depending on the material and coating requirements.



4.Is this machine suitable for large-scale production?

This machine is more suitable for small-scale production and R&D, not for large-scale industrial production.



5.How easy is it to operate?

The machine is designed for easy operation by one person, with simple controls and efficient loading and unloading systems.



6.Can I use it for testing new adhesive formulations?

Yes, this machine is ideal for testing a variety of adhesive formulations in small quantities before scaling up to larger production.
