Plastic Film Environmentally Friendly Recycling Granulator







Machine introduction:

The Environmentally Friendly Granulator is an advanced plastic recycling equipment designed for efficient and sustainable processing of plastic materials. Specifically, the 100/130 type models are equipped with an extended screw and barrel exhaust system, enhancing devolatilization and improving the quality of regenerated pellets. These machines are widely used in plastic recycling lines to transform waste plastic into reusable granules.



Main features:

Barrel with exhaust extended screw: Improves degassing and removal of volatile components.

Hydraulic screen changing: Allows for quick and efficient screen replacement without stopping production.

Pneumatic feeding system: Ensures consistent and automated material supply.

Energy-efficient operation: Optimized power consumption with high output rates.

Hard-tooth surface reducer (national standard): Provides durability and reliable power transmission.

Integrated cutting system: Equipped with a cutting motor and fan for precise pelletizing.



Technical parameter:

Parameter	HY-R100	HY-R130
Output (Kg/h)	100-120	120-150
Avg. Power Consumption (Kwh)	24	28
Total Power (Kw)	45	52
Main Motor Power (Kw)	30–6	37-6
Machine Size (mm)	3150×2500×2200	3400×2600×2200
Machine Weight (Kg)	1800	2000
Screw Diameter & Length	100 mm & 1700 mm	130 mm &1800 mm
Reducer Type	180 Hard-tooth surface national standard	225 Hard-tooth surface national standard
Feeding Fan Power (Kw)	2.2×1 1.5×2	2.2×1 1.5×2
Cutting Motor Power (Kw)	1.5	1.5
Feeding Method	Pneumatic	Pneumatic
Screen Changing Method	Hydraulic screen replacement	Hydraulic screen replacement



Advantage：

High Efficiency: Designed for continuous high-output production with low energy consumption.

Improved Pellet Quality: The exhaust extended screw ensures better melting and devolatilization.

Easy Maintenance: Hydraulic screen swapping and automated feeding reduce downtime.

Environmental Benefits: Reduces plastic waste and supports circular economy initiatives.

Robust Construction: Built with national standard components for long-term reliability.



Application fields：

This granulator is ideal for:

Recycling plastic waste such as PE, PP, PET, etc.

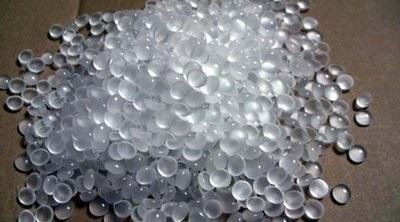

Producing uniform plastic pellets for reuse in extrusion, injection molding, or blow molding.

Environmentally focused manufacturing and recycling facilities.



Packaging and delivery:

FAQ:

1.Q: What types of plastics can be processed?

A: The granulator is suitable for processing common thermoplastics like PE, PP, PVC, ABS, and more.



2.Q: How often does the screen need to be changed?

A: It depends on material contamination, but the hydraulic screen change system allows for quick replacement without stopping the machine.



3.Q: Is training required to operate this machine?

A: Basic training is recommended for safe and efficient operation, especially for the hydraulic and pneumatic systems.



4.Q: What is the energy consumption of the 130-type model?

A: The average power consumption is between 28–52 Kwh, depending on material and operating conditions.



5.Q: Can the machine be customized?

A: Yes, options such as screw design, motor power, and automation level can often be customized based on requirements.
