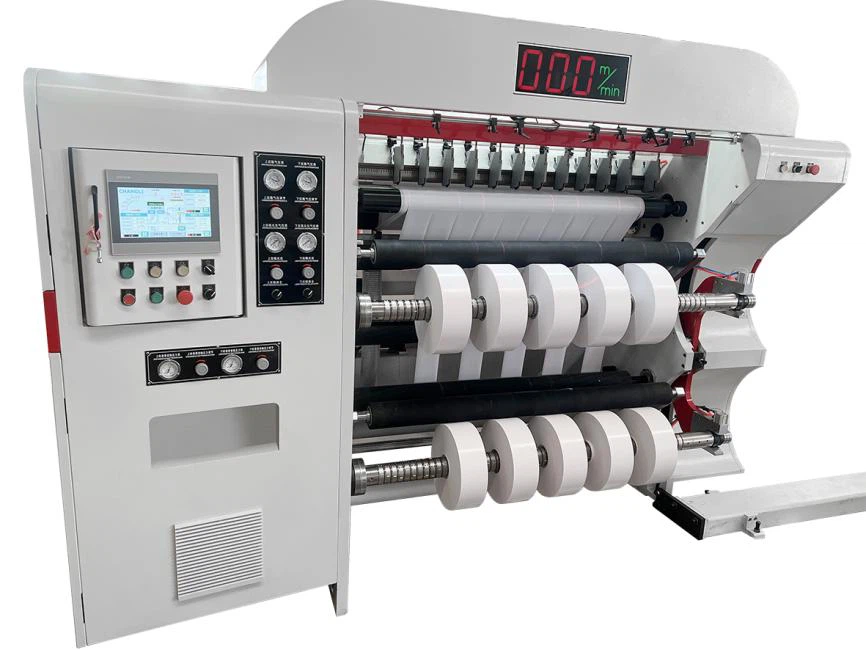

High Speed Paper Slitting and Rewinding Machine

High Speed Paper Slitting And Rewinding Machine







1.This machine adopts motor moment control and automatic taper tension, central surface reeling. Frequency converter timing for main

motor, keeping speed up and stable operation.

2.Max loading 1500kg,for jumbo roll.

3.Automatic photocell EPC system.

4.Hydraulic shaftless loading system.









Model	HYFQ-L1300	HYFQ-L1600
Max.Width of raw material	1300mm	1600mm
Max.Parent web diameter	Φ700mm	Φ700mm
Max.Rewinding diameter	Φ450mm	Φ450mm
Min.Slitting width	30mm	30mm
Max.Machine speed	400m/min	400m/min
Thickness of raw material	0.012-0.2mm	0.012-0.2mm
Edge adjusting accuracy	±0.3mm	±0.3mm
Total power	14kw	17kw
Machine dimensions	2900*1650*1800mm	3200*1650*1800mm
Machine weight	3300kg	3800kg









1. What is the max rewiding diameter?

The max diameter 1200mm.



2. If the matrial have a requirement to prevent scratch?

we can use anti bending roll and scratch can be prevented.



3. How to make the material roll up neatly?

Auto meter presetting, EPC error correction device is positive to assure the accuracy.



4. Is the slitting machine easy to operate?

After wear the material computer control.



5. What is the min width of the machine?

The min width 30mm.(customize according to the material).



6. Do you have a CE certificate?

Yes,we have a CE certificate.
